TEK4 FHD (Fast Hole Drill) edm systems are so of the most advanced EDM machines on the market. With world leading features and great flexibility, our Fast hole drill machines are prefect for drilling cooling holes into aero blades, IGT blades, vanes, segments and other components. Our EDM systems come in three different sizes, 6g FHD Aero a small compact machine allowing for paint to paint placement, 6g FHD ST machine which is our medium sized cross over machine, giving you the ability to drill medium sized aero/IGT components and finally the 6g FHD XLL / GXL edm machine which is our largest machine and is designed for drilling and laser ablation on large gas turbine components, the machine's configuration enables larger then expected components to be machined in a single setup.
Fast Hole Drill EDM Machines
TEK4 offers a range of world-leading performance and capability fast hole drill EDM machines. These machines are specifically developed for hole drilling of aero, industrial gas turbine blades, vanes, segments, and other components.
TEK4s 7g machines are the latest generation of fast hole drill EDM machines, featuring many new technologies and systems, including a completely new control system, through-flushing tooling, and drill after coating (DAC) technology to name a few.
Simply click on a machine image below to find out more about the machines and features.
TEK4 offers 4 different size fast hole drill edm machines, the AERO, ST, XLL and the GXL model. This fast hole drill edm machines are all designed and developed for drilling cooling holes into aero, industrial gas turbines, vanes, segments and other components.
Designed for integration with any of our FHD EDM machines
Designed for small components
7g FHD Aero – Fast Hole Drill EDM Machine
7g FHD Aero
The 7g FHD Aero is specifically designed for aero components, engine blades, vanes and small industrial gas turbine components. TEK4’s latest 7g platform FHD EDM Drill has market-leading performance and a compact footprint allowing ‘Paint to Paint’ placement of machines.
7g Key Features
• Outstanding EDM Performance
• Automatic guide and electrode changing
• Inbuilt CMM probe
• 7g easy to use operator interface
• Best in class metallurgy
• Laser Ablation - Drill After Coating (optional)
• Rapid Shaped Hole Drilling
• Advanced Break Through
Designed for medium to large components
7g FHD ST – Fast Hole Drill EDM Machine
7g FHD ST
The 7g FHD ST is the latest generation of our medium sized crossover machine. It has been specifically developed for hole drilling of small to medium-sized aero parts, IGT blades, segments, and other components. It offers flexibility for a range of applications.
7g Key Features
• Outstanding EDM Performance
• Automatic guide and electrode changing
• Inbuilt CMM probe
• 7g easy to use operator interface
• Best in class metallurgy
• Laser Ablation - Drill After Coating (optional)
Designed for large gas turbine components
7g FHD XLL – Fast Hole Drill EDM Machine
7g FHD XLL
The 7g FHD XLL is TEK4’s larger machine specifically developed for drilling and laser ablation on large gas turbine components. The machine’s configuration enables larger than expected components to be machined in a single set up.
​
7g Key Features
• Outstanding EDM Performance
• Automatic guide and electrode changing
• Inbuilt CMM probe
• 7g easy to use operator interface
• Best in class metallurgy
• Laser Ablation - Drill After Coating (optional)
Designed for very large gas turbine components
7g FHD IGT – Fast Hole Drill EDM Machine
7g FHD IGT
​
This is TEK4’s largest machine. It has been specifically developed for hole drilling of very large gas turbine components.
​
7g Key Features
• Outstanding EDM Performance
• Automatic guide and electrode changing
• Inbuilt CMM probe
• 7g easy to use operator interface
• Best in class metallurgy
• Laser Ablation - Drill After Coating (optional)

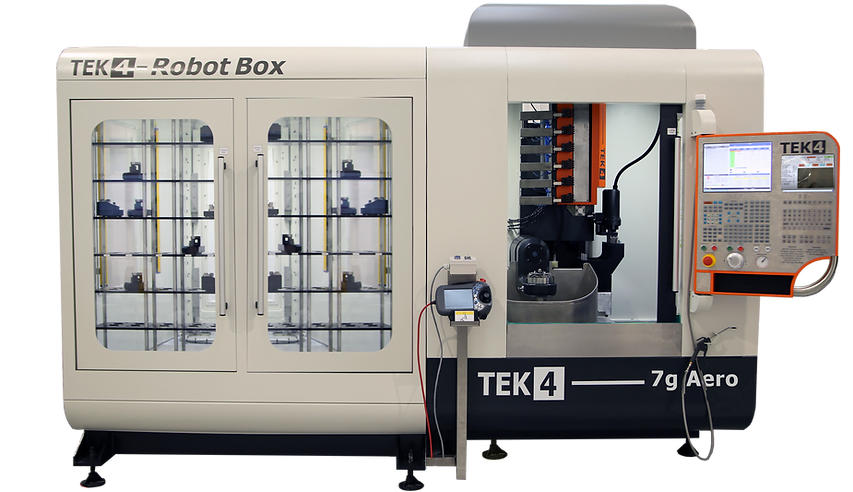

TEK4 - Robot Box
Robot Box
​
TEK4 have integrated complete robot systems for the production of new parts and for the repair industry.
​
Each automation system is tailored to meet your requirements, our team of experts will work with you to define the automation system that best meets your needs.
​
Robot Box Key Features
-
Robot loading of parts
-
Robot loading of fixtures
-
Robot loading of electrode cartridges
-
Automatic identification of parts
-
Automatic identification of fixtures
-
Automatic identification of electrodes
-
In-process control
-
Production reporting
